Fleetguard HF7981 Replacement Special Filter

Fleetguard HF7981
Fleetguard HF7981
Representative product image Product image feedback

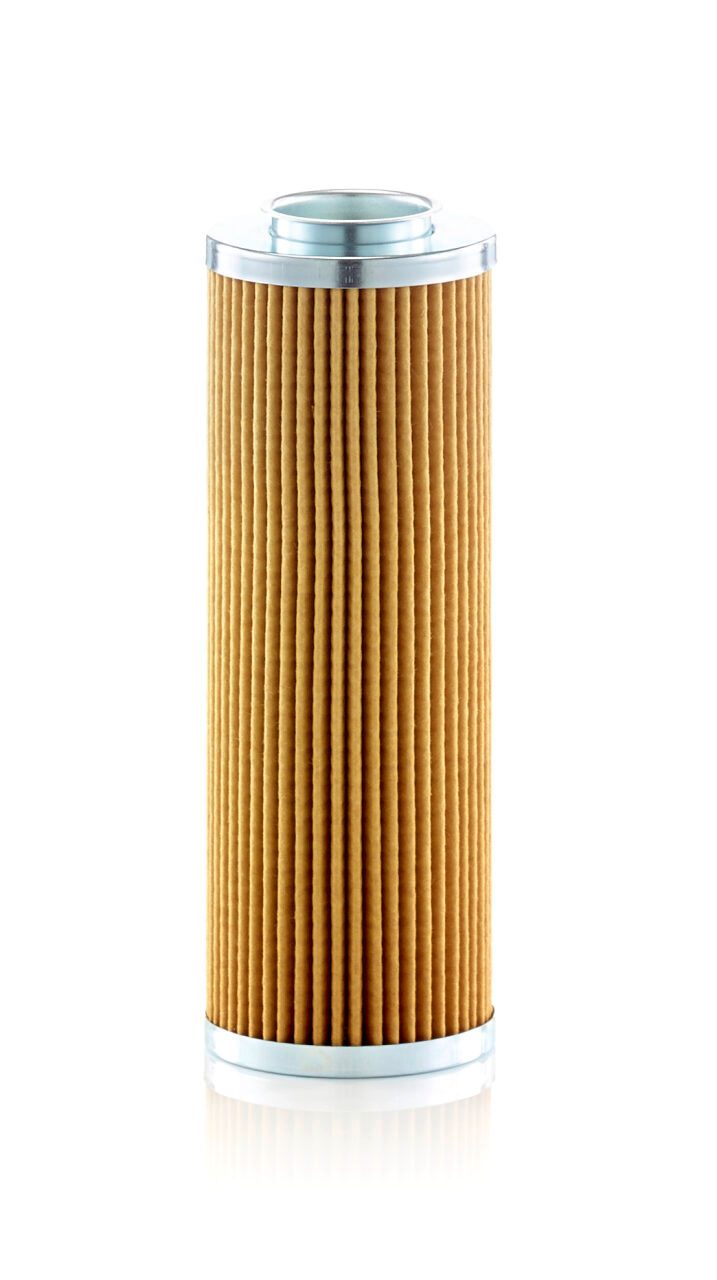

Fleetguard HF7981 Special Filter

Brand: Fleetguard
Description

Fleetguard® HF7981 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$38.00
0.91 lbs
0.044 ft³
420 pcs
United States
8421.99.90
0.79 lbs
0.057 ft³
420 pcs
Italy
8421.29.80.90
0.71 lbs
0.043 ft³
420 pcs
France
8421.99.90
420 pcs
Italy
8421.99.90
0.68 lbs
0.034 ft³
420 pcs
Italy
8421.99.90
Shipping Terms

Description

Fleetguard® HF7981 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StyleSpecial Filter
MediaCellulose
Efficiency 110µ @ β2
Outer Diameter 2 3/4"
Inner Diameter 1 5/8"
Length 7 11/16"
Bypass Pressure 15 psi
Temperature Range -10 - +250°F
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard HF7981

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Special Filter
Outer Diameter 2.76 in
Inner Diameter 1.65 in
Length 7.68 in
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

15 PSI
Collapse Pressure
Seal
Temperature Range -10 - +250°F
