MicroFit MFHLP31035 Replaces the Ikron HEK8540132ASFG025LCB

MICROFIT MFHLP31035
MICROFIT MFHLP31035
Representative product image Product image feedback

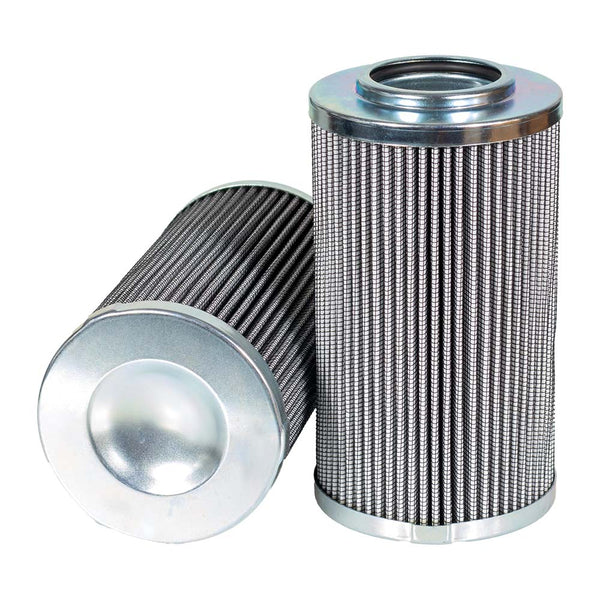

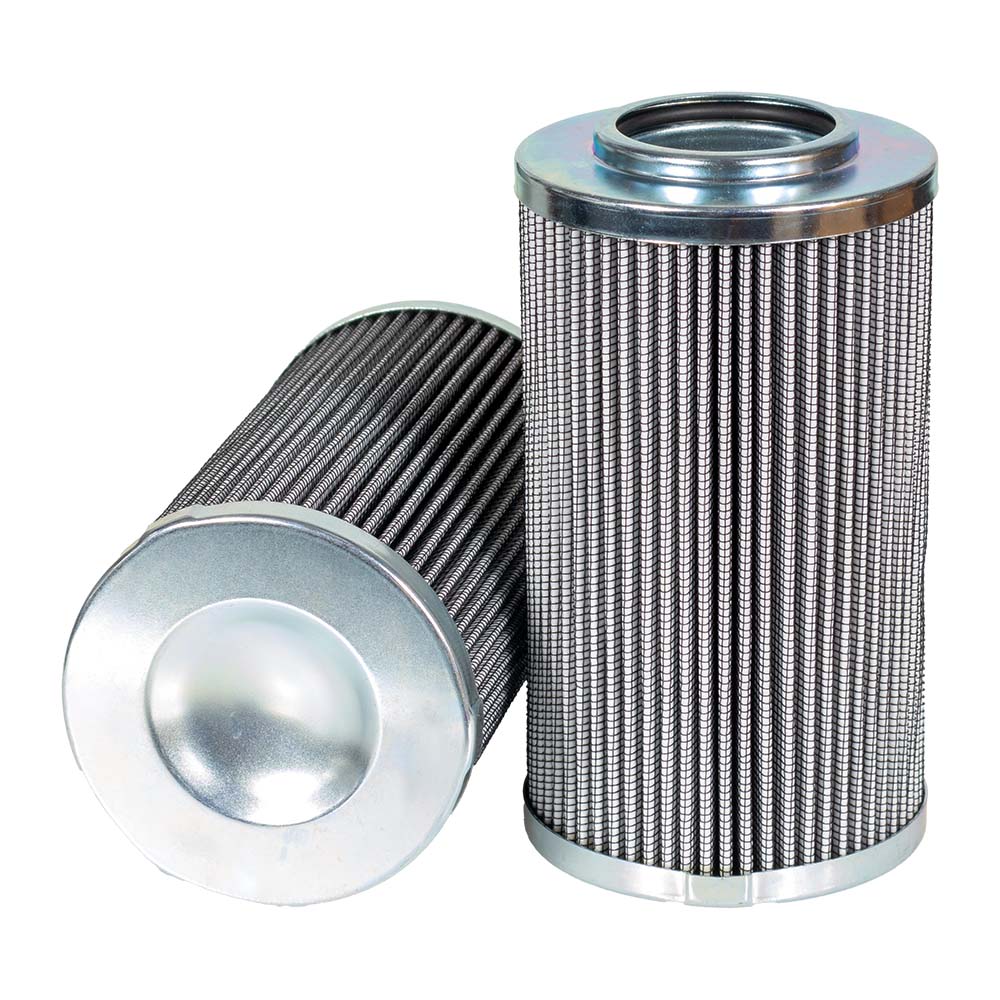

MicroFit® UltraGen III MFHLP31035 Pressure Filter | Replaces the Ikron HEK8540132ASFG025LCB

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31035 is the MICROFIT® approved replacement to the Ikron HEK8540132ASFG025LCB. Engineered and manufactured in Great Britain the MFHLP31035

Price Match
$45.00
2.43 lbs
0.03 ft³
700 pcs
United Kingdom
8421.99.90
1.01 lbs
0.051 ft³
700 pcs
France
8421.99.90
1.01 lbs
0.034 ft³
700 pcs
Italy
8421.29.80.90
1.1 lbs
0.03 ft³
700 pcs
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31035 is the MICROFIT® approved replacement to the Ikron HEK8540132ASFG025LCB. Engineered and manufactured in Great Britain the MFHLP31035

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 3 1/16"
Inner Diameter 1 5/8"
Length 5 1/2"
Δ Collapse Pressure 304.6 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine Ikron HEK8540132ASFG025LCB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 3.07 in
Inner Diameter 1.59 in
Length 5.51 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 305 PSI
Seal Nitrile
Temperature Range -20 - +210°F
