Specification

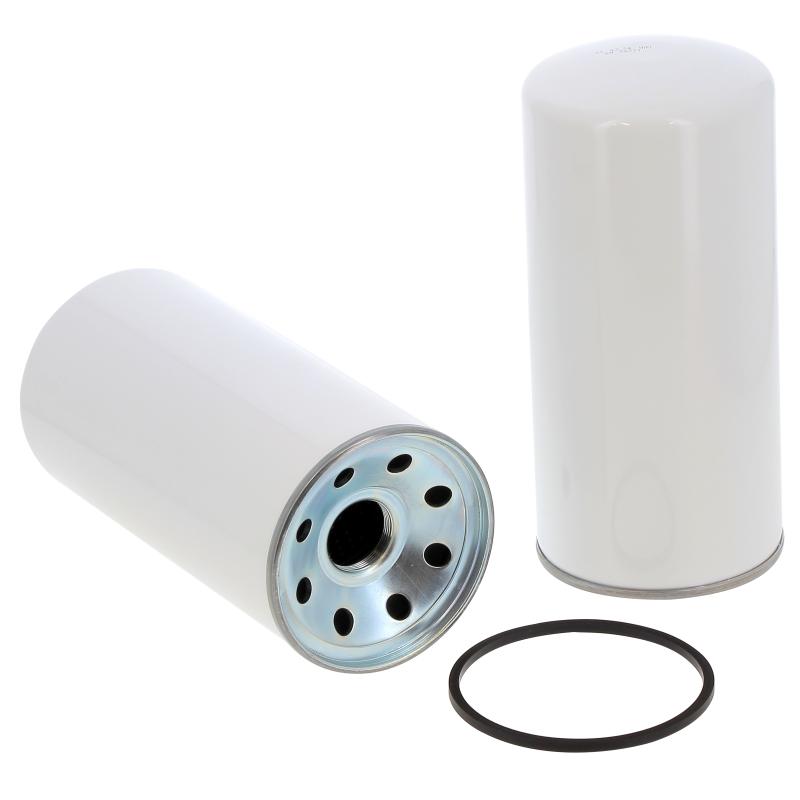

StyleSpin-On Filter
Efficiency 125µ @ β2
Outer Diameter 5.04 in
Length 10.47 in
Thread1 1/2"-16 UN
MediaCellulose
Δ Collapse Pressure 203 PSI
Seal MaterialNitrile
Temperature Range -20 - +210°F

Approved Product

Find out more
Default Brand Logo

Same Fit-Form & Function

As the Genuine Ikron HEK4430210ASSP025B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β2
Efficiency 2
Style Spin-On Filter
Outer Diameter 5.04 in
Inner Diameter
Length 10.47 in
Media Type Cellulose
Flow Direction
Thread 1 1/2"-16 UN
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 203 PSI
Seal Nitrile
Temperature Range -20 - +210°F
