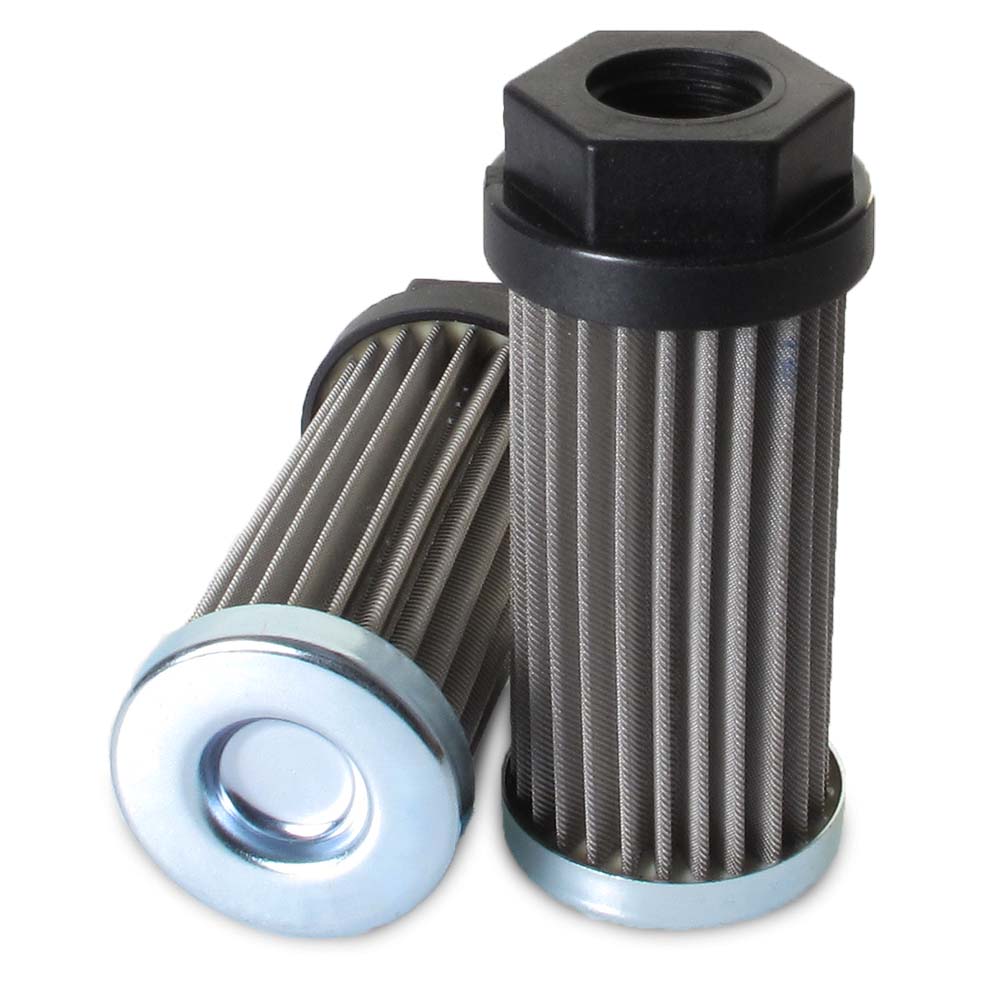

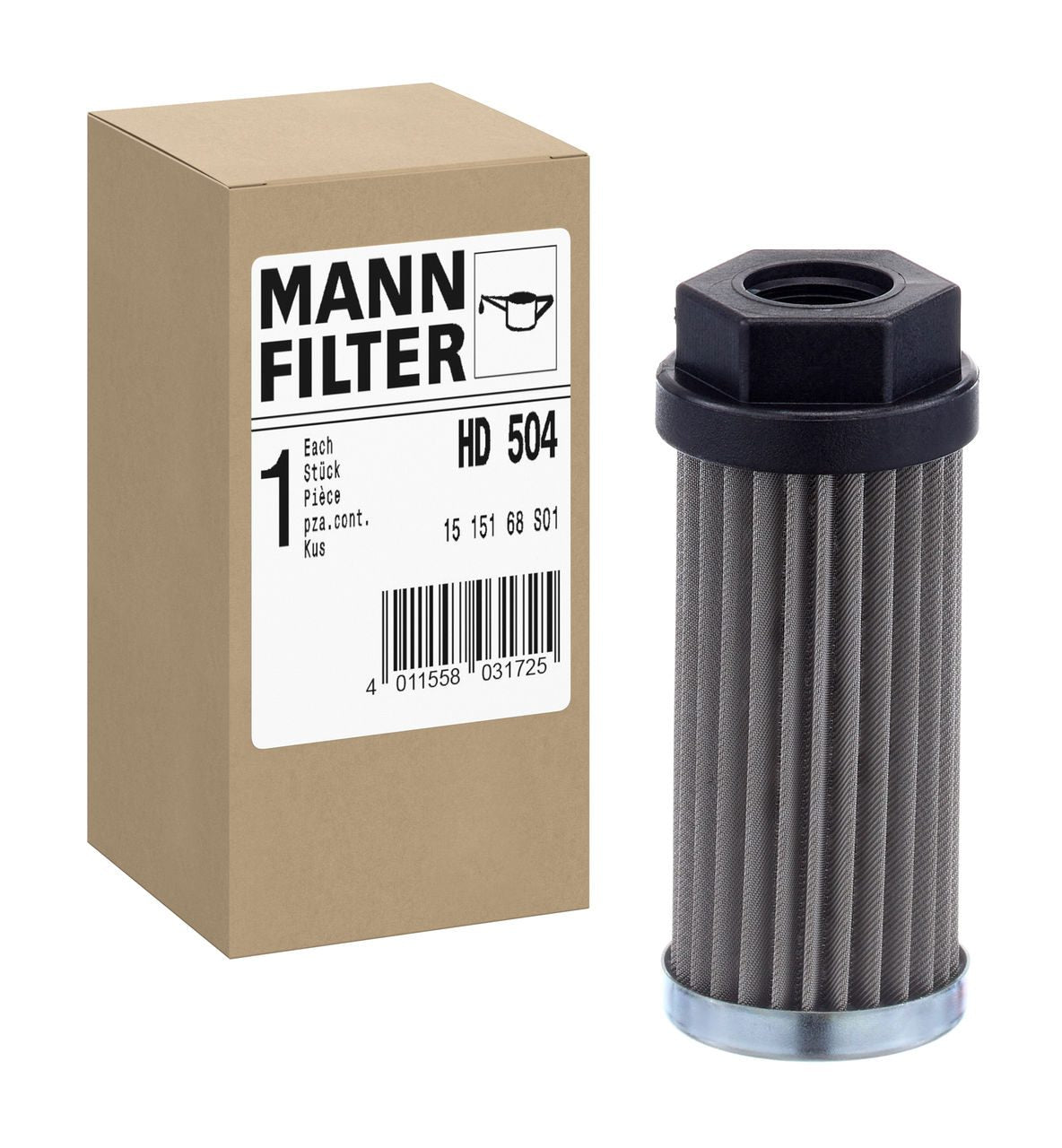

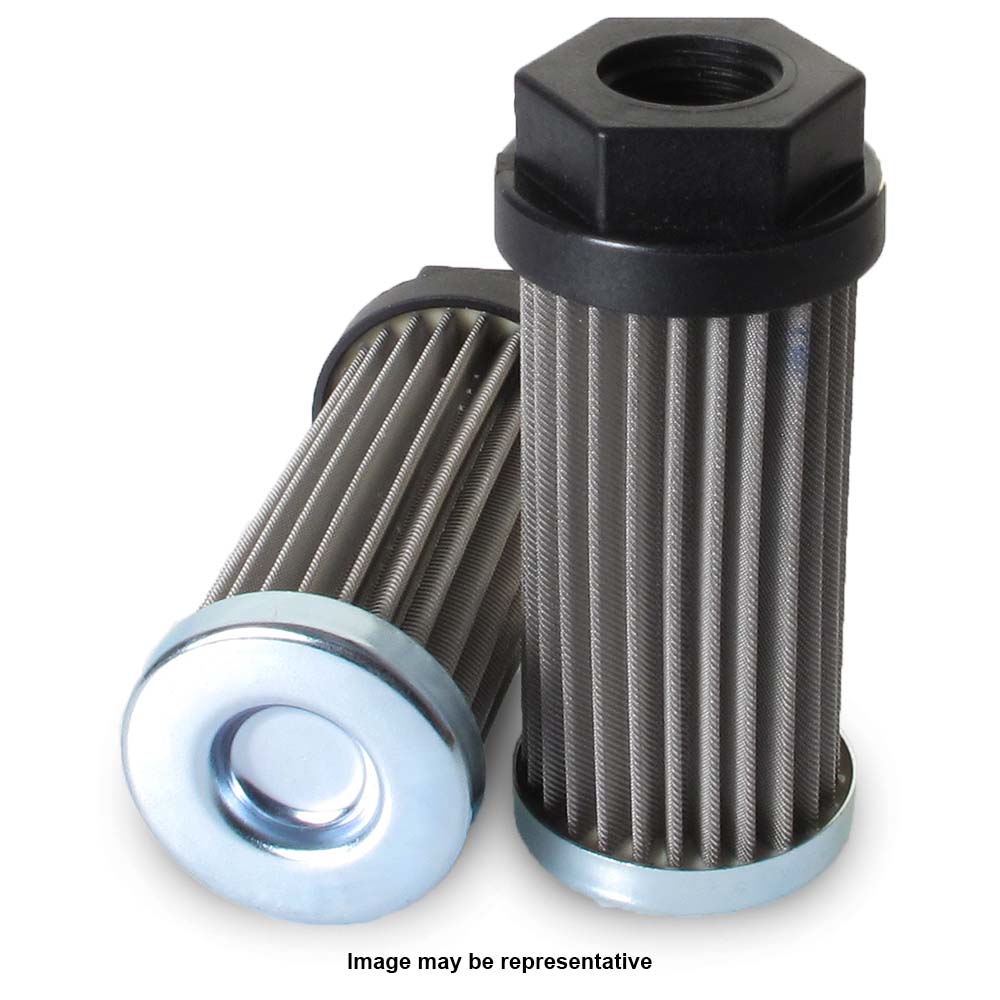

Mann HD504 Replacement | FilterFinder FF203517B

Specification
Efficiency 1 The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β. E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.	125µ
Efficiency 2
Style	Suction Strainer
Outer Diameter	1.81 in
Inner Diameter
Length	4.17 in
Media Type	Wire Mesh
Flow Direction	OUT-IN
Thread	1/2" BSP
Bypass Pressure Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.
Collapse Pressure	15 PSI
Seal	Nitrile
Temperature Range	-20 - +210°F

Choose your wishlist to be added

Dimension G	G 1/2
Dimension H	4 3/16"
