MicroFit MFHC60036 Replaces the Pall HC9404FRP39Z

HC9404FRP39Z
HC9404FRP39Z
Representative product image Product image feedback

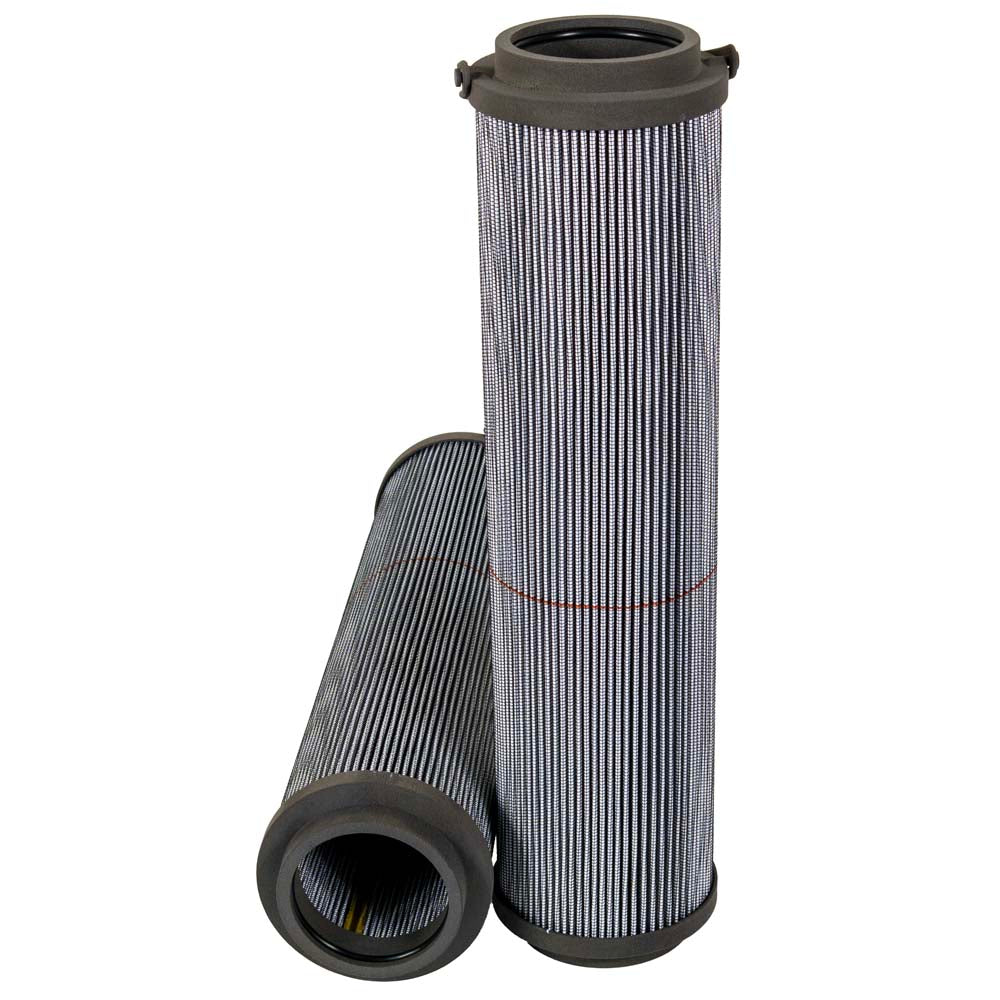

MicroFit® UltraGen III MFHC60036 Coreless Filter | Replaces the Pall HC9404FRP39Z

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHC60036 is the MICROFIT® approved replacement to the Pall HC9404FRP39Z. Engineered and manufactured in Great Britain the MFHC60036

Price Match
$434.00
7.97 lbs
0.325 ft³
United Kingdom
8421.99.90
3.64 lbs
0.328 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHC60036 is the MICROFIT® approved replacement to the Pall HC9404FRP39Z. Engineered and manufactured in Great Britain the MFHC60036

Specification

StyleCoreless Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 3 13/16"
Inner Diameter 2 9/16"
Length 38 1/16"
Δ Collapse Pressure 145.0 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall HC9404FRP39Z

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Coreless Filter
Outer Diameter 3.84 in
Inner Diameter 2.54 in
Length 38.07 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 145 PSI
Seal Viton
Temperature Range -10 - +250°F
