Summary

MicroFit MFHC60154 Replaces the Pall HC8904FRP13H

MICROFIT MFHC60154
MICROFIT MFHC60154

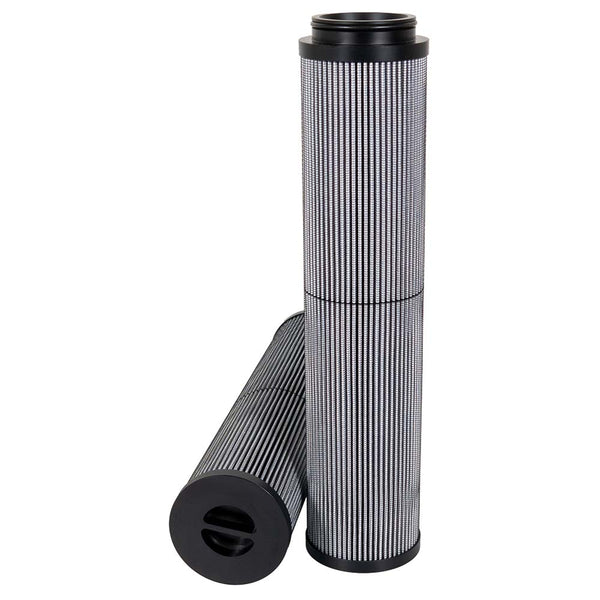

Representative product image Product image feedback

MicroFit® UltraGen III MFHC60154 Coreless Filter | Replaces the Pall HC8904FRP13H

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHC60154 is the MICROFIT® approved replacement to the Pall HC8904FRP13H. Engineered and manufactured in Great Britain the MFHC60154

Price Match
$180.00
2.6 lbs
0.106 ft³
United Kingdom
8421.99.90
1.39 lbs
0.147 ft³
Canada
8421.29.80.90
1.19 lbs
0.107 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHC60154 is the MICROFIT® approved replacement to the Pall HC8904FRP13H. Engineered and manufactured in Great Britain the MFHC60154

Specification

StyleCoreless Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 3 13/16"
Inner Diameter 2 9/16"
Length 12 3/8"
Δ Collapse Pressure 145.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall HC8904FRP13H

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Coreless Filter
Outer Diameter 3.84 in
Inner Diameter 2.54 in
Length 12.4 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
