MicroFit MFHHP40881 Replaces the Pall HC2237FRP20H

HC2237FRP20H
HC2237FRP20H
Representative product image Product image feedback

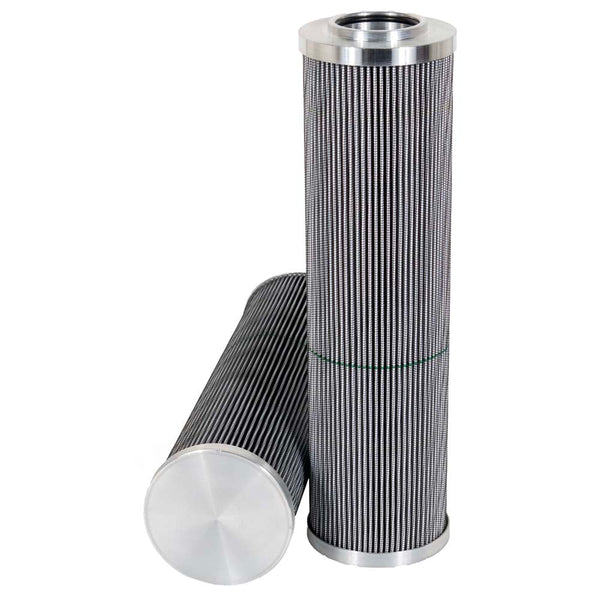

MicroFit® UltraGen III MFHHP40881 Pressure Filter | Replaces the Pall HC2237FRP20H

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40881 is the MICROFIT® approved replacement to the Pall HC2237FRP20H. Engineered and manufactured in Great Britain the MFHHP40881

Price Match
$445.00
14.29 lbs
0.141 ft³
United Kingdom
8421.99.90
6.5 lbs
0.139 ft³
Italy
8421.99.90
6.08 lbs
0.169 ft³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40881 is the MICROFIT® approved replacement to the Pall HC2237FRP20H. Engineered and manufactured in Great Britain the MFHHP40881

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 3 9/16"
Inner Diameter 1 7/8"
Length 19 3/16"
Δ Collapse Pressure 3045.8 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall HC2237FRP20H

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 3.56 in
Inner Diameter 1.89 in
Length 19.17 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 3046 PSI
Seal Nitrile
Temperature Range -20 - +210°F
