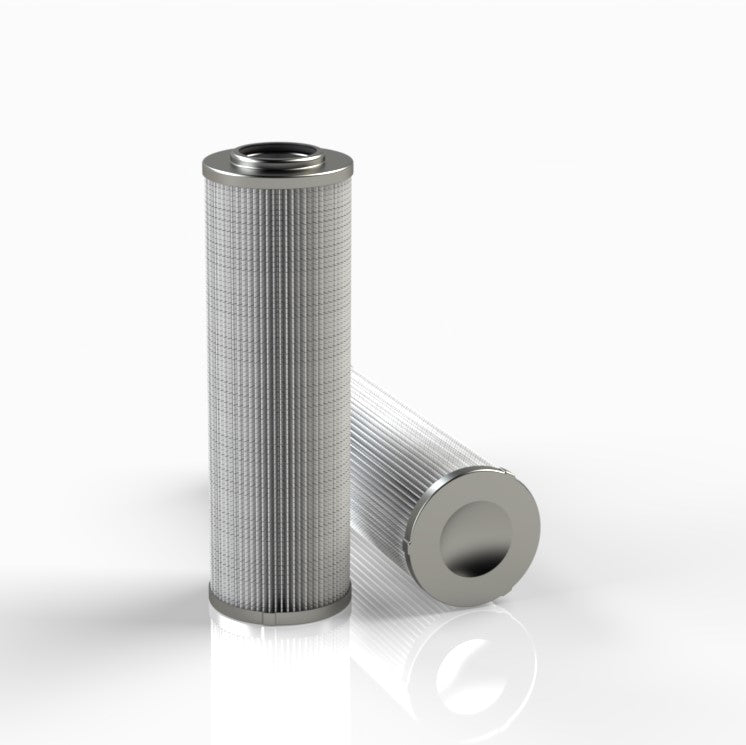

FilterFinder No: FF206906B

Alternative DIN Filter

Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style DIN Filter
Outer Diameter 44.5 mm
Inner Diameter 22.1 mm
Length 157 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Viton
Temperature Range -25 - +120
