The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β. E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
200µ
Efficiency 2

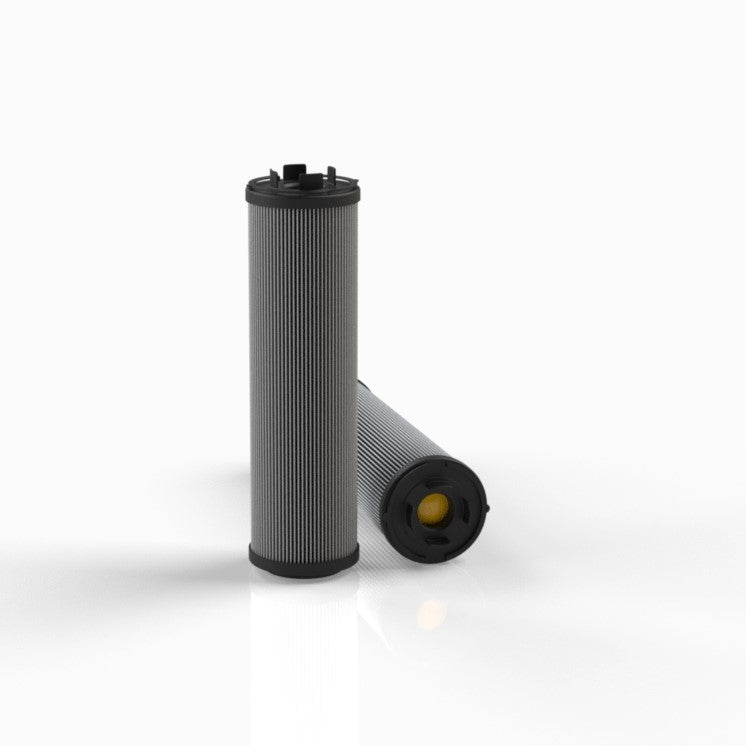

Style
Return Filter
Outer Diameter
124 mm
Inner Diameter
96.5 mm
Length
921 mm
Media Type
Wire Mesh
Flow Direction
OUT-IN
Thread
Bypass Pressure
Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.
3.0 BAR
Collapse Pressure
20 BAR
Seal
Nitrile
Temperature Range
-30 - +100°C
