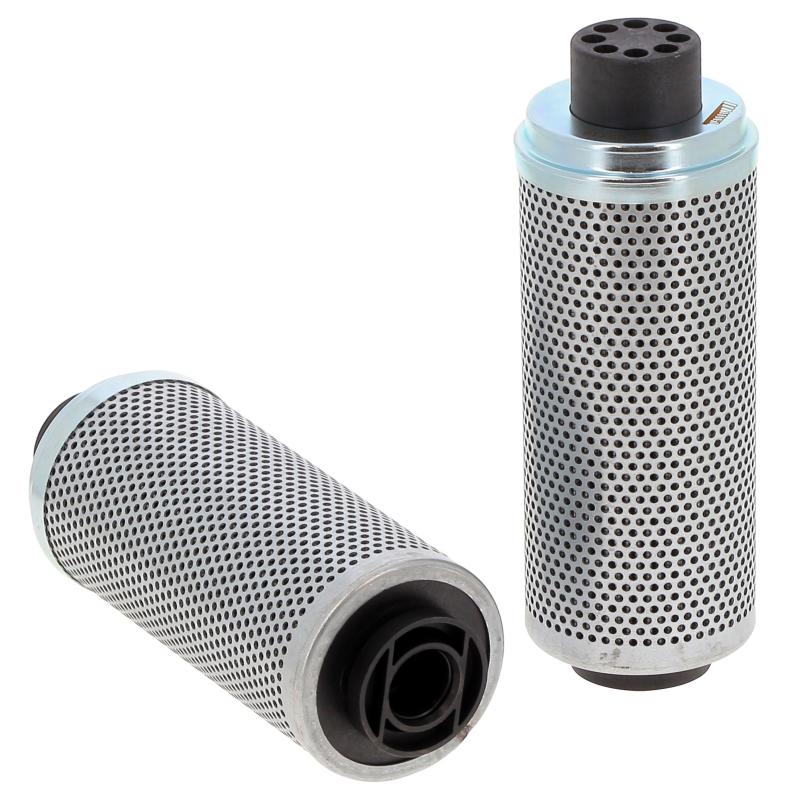

FilterFinder No: FF206079B

Alternative Special Filter

Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Special Filter
Outer Diameter 85 mm
Inner Diameter 26.5 mm
Length 244 mm
Media Type Glass Fiber
Flow Direction IN-OUT
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

2.0 BAR
Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
