FilterFinder No: FF205294B

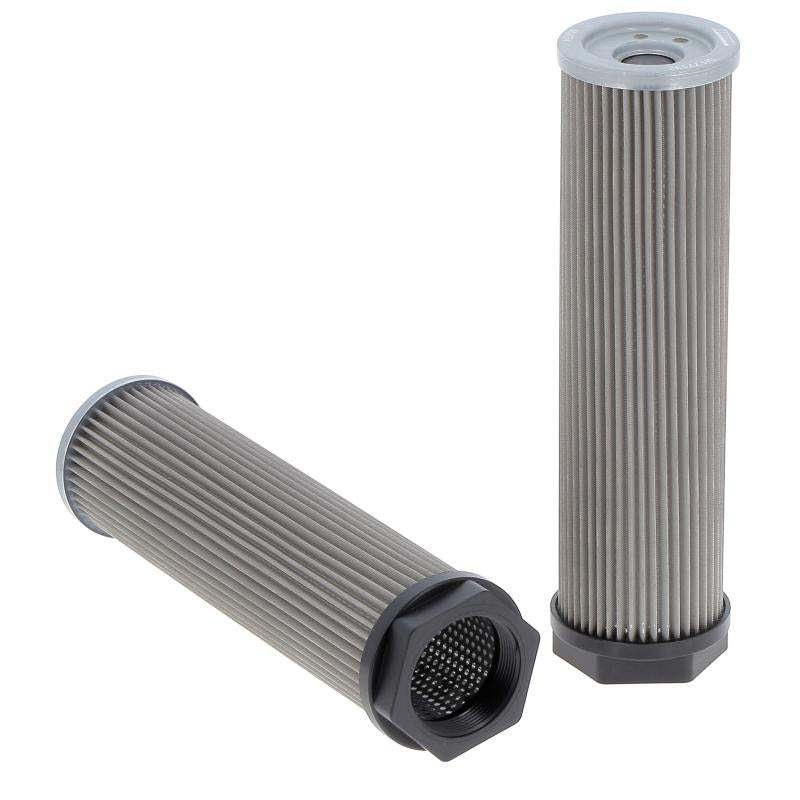

Replacement Special Filter

Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
Efficiency 2
Style Special Filter
Outer Diameter 3.39 in
Inner Diameter
Length 12.2 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 2" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 15 PSI
Seal Viton
Temperature Range -10 - +250°F
