FilterFinder No: FF200157B

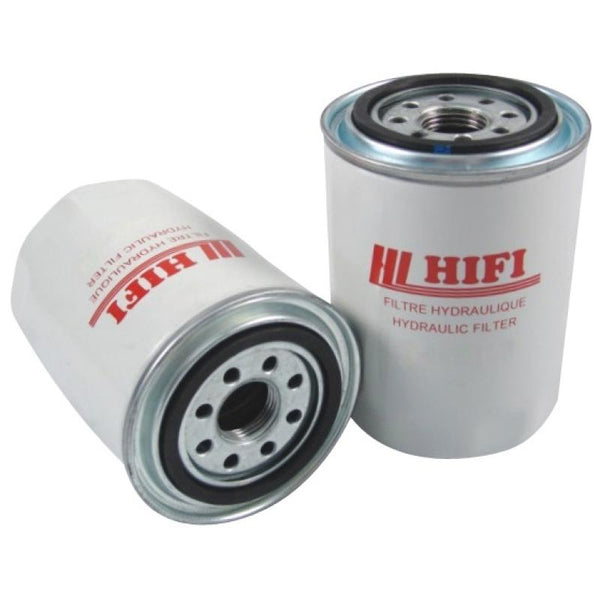

Alternative Spin-On Filter

Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
Efficiency 2
Style Spin-On Filter
Outer Diameter 96 mm
Inner Diameter
Length 213 mm
Media Type Wire Mesh
Flow Direction
Thread 3/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 12 BAR
Seal Nitrile
Temperature Range -30 - +100°C
