Mann Filter WH 980 Replaces the Clean DH 5805

DH 5805
DH 5805
OE Quality
Range
Range
Watch video
▶
Representative product image Product image feedback

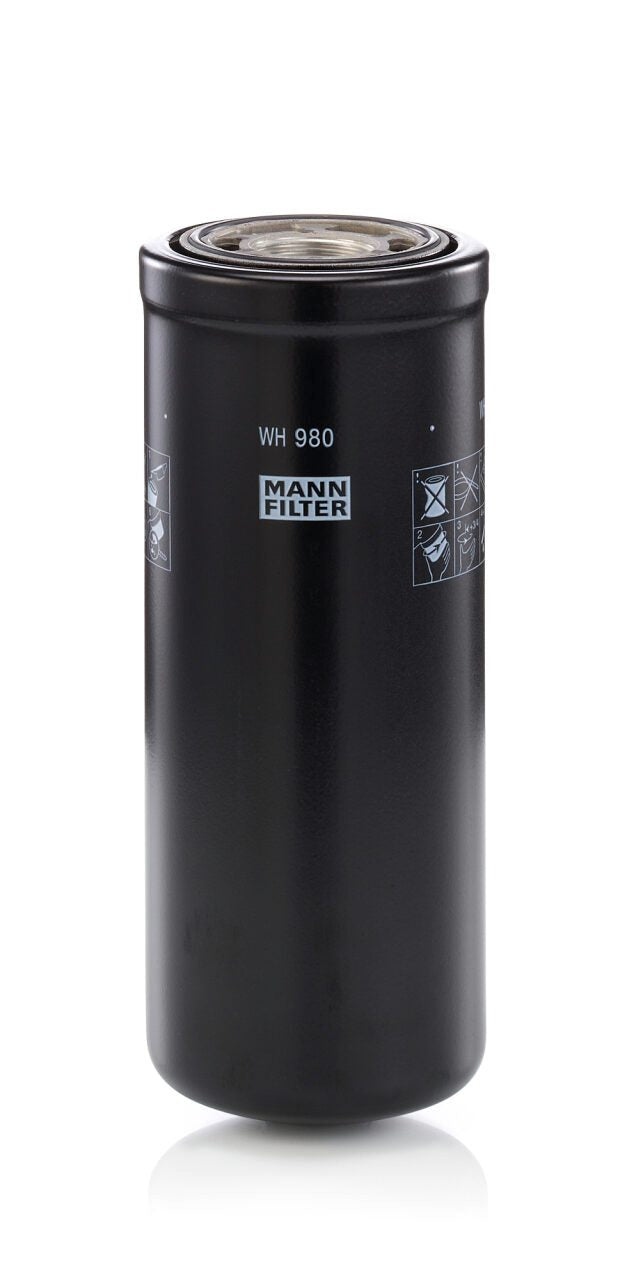

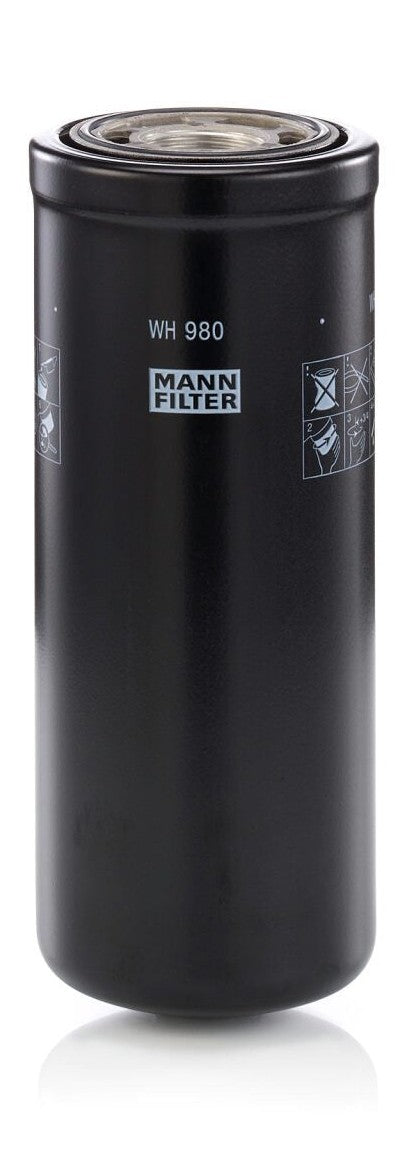

Mann Filter WH 980 Hydraulics | Replaces the Clean DH 5805

Brand: Mann Filter
Description

MANN-FILTER spin-on hydraulic filters offer maximum filtration performance and thus ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Price Match
$59.00
Germany
8421.29.80
Shipping Terms

Description

MANN-FILTER spin-on hydraulic filters offer maximum filtration performance and thus ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Specification

StyleHydraulics

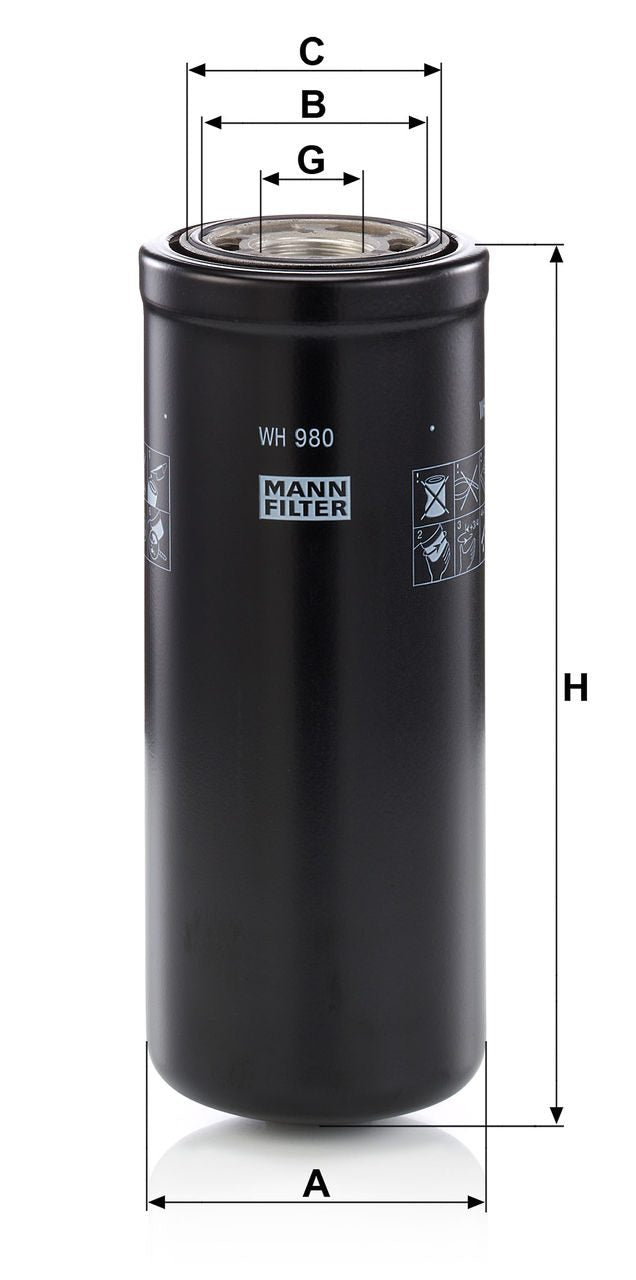

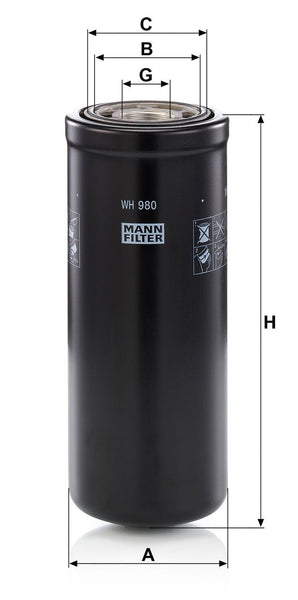

Dimension A 3 11/16"
Dimension B 2 7/16"
Dimension C 2 13/16"
Dimension G 1 3/8-12 UNF
Dimension H 9 7/16"
Default Brand Logo

Same Fit-Form & Function

As the Genuine Clean DH 5805

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
Efficiency 2
Style Hydraulics
Outer Diameter
Inner Diameter
Length
Media Type
Flow Direction
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal
Temperature Range
