Donaldson P171577 Alternative to the MP Filtri 8MF400-3M60NBP01

8MF400-3M60NBP01
8MF400-3M60NBP01
Watch video
▶
Representative product image Product image feedback

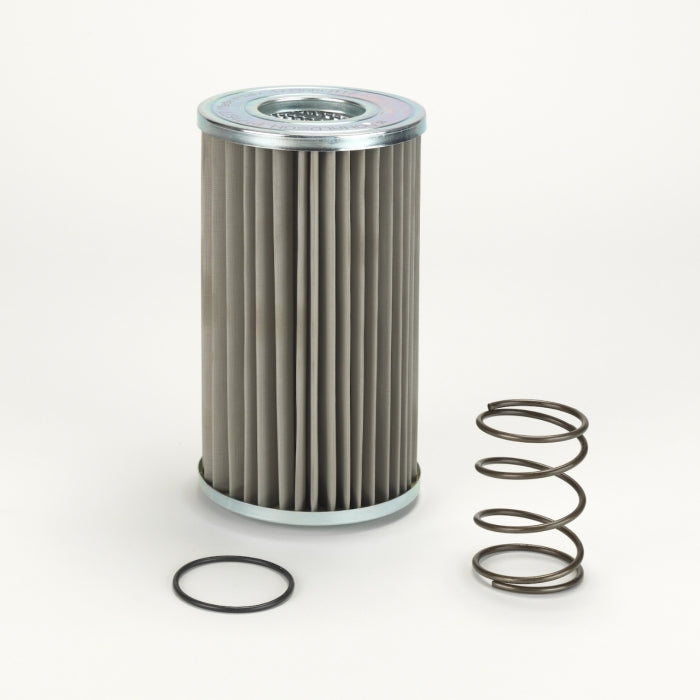

Donaldson P171577 Hydraulic Filter, Cartridge | Alternative to the MP Filtri 8MF400-3M60NBP01

Brand: Donaldson
Price Match
$81.00
1.29 kg
0.0065 m³
120 pcs
Italy
8421.29.80.90
1.1 kg
0.0045 m³
120 pcs
France
8421.99.90
3.4 kg
0.0039 m³
120 pcs
United Kingdom
8421.99.90
1.55 kg
0.0045 m³
120 pcs
Italy
8421.99.90
Shipping Terms

Description

Genuine Donaldson P171577 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StyleReturn Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 5 1/8"
Inner Diameter 2 9/16"
Length 9 1/8"
Bypass Pressure 15 psi
Δ Collapse Pressure 145.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F

Description

Genuine Donaldson P171577 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Cross References

To the genuine MP Filtri 8MF400-3M60NBP01

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Donaldson Warranty

Donaldson Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Return Filter
Outer Diameter 5.12 in
Inner Diameter 2.54 in
Length 9.13 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

15 PSI
Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
