Summary

MicroFit MFHR56765 Replaces the MP Filtri 8MF1802A03NBP01

MICROFIT MFHR56765
MICROFIT MFHR56765
Representative product image Product image feedback

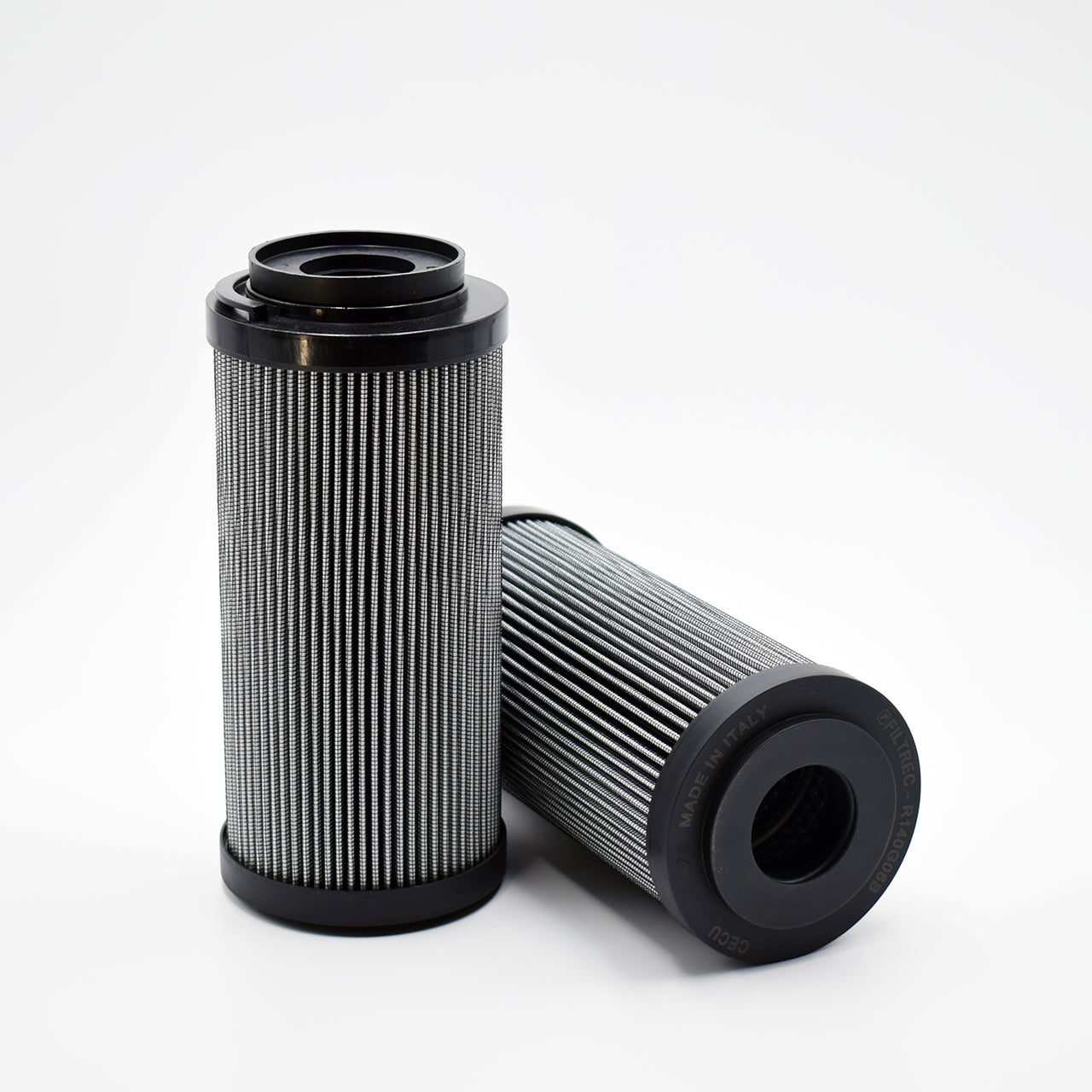

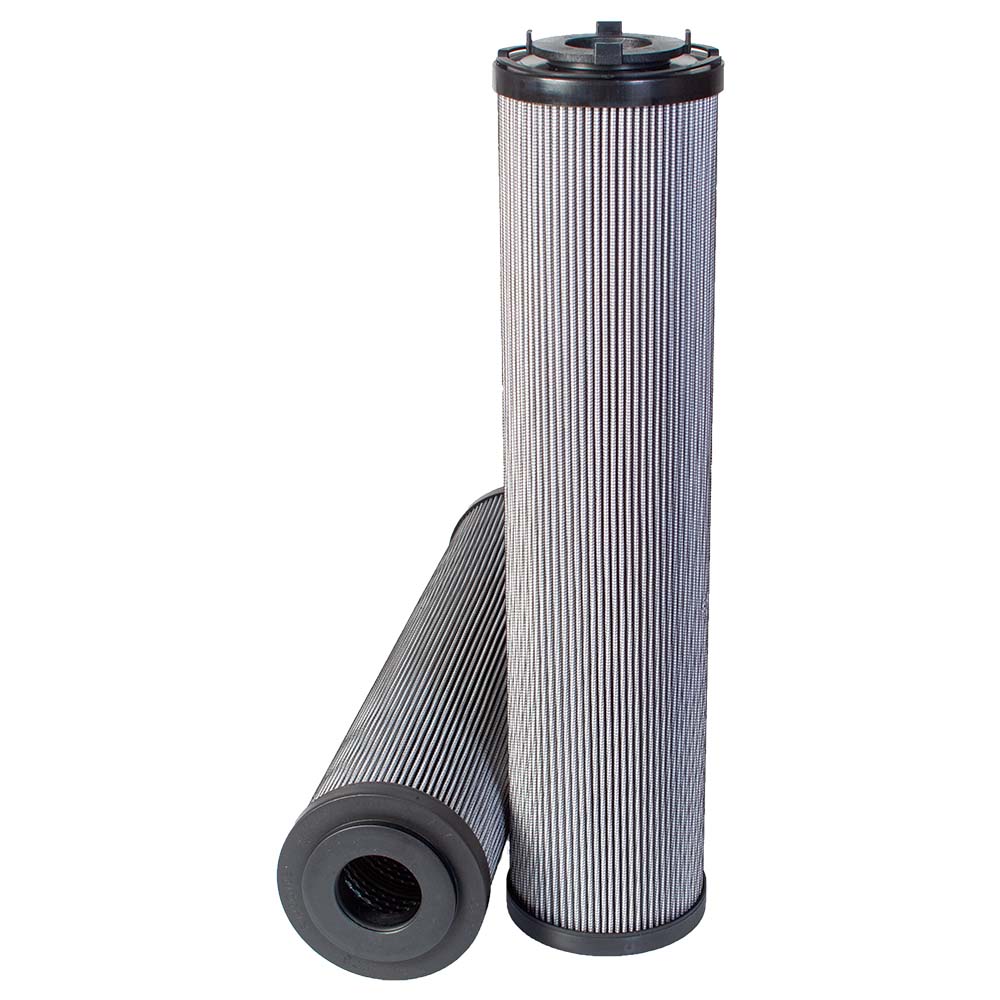

MicroFit® UltraGen III MFHR56765 Return Filter | Replaces the MP Filtri 8MF1802A03NBP01

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR56765 is the MICROFIT® approved replacement to the MP Filtri 8MF1802A03NBP01. Engineered and manufactured in Great Britain the MFHR56765

Price Match
$101.00
7.86 lbs
0.148 ft³
United Kingdom
8421.99.90
3.57 lbs
0.148 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR56765 is the MICROFIT® approved replacement to the MP Filtri 8MF1802A03NBP01. Engineered and manufactured in Great Britain the MFHR56765

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 3 7/8"
Inner Diameter 1 5/8"
Length 16 5/8"
Bypass Pressure 15 psi
Δ Collapse Pressure 145.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
MP Filtri Brand Logo

Same Fit-Form & Function

As the Genuine MP Filtri 8MF1802A03NBP01

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Return Filter
Outer Diameter 3.9 in
Inner Diameter 1.59 in
Length 16.65 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

15 PSI
Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
