Summary

MicroFit MFHLP31032 Alternative to the MP Filtri 8HP1353A03NA

8HP1353A03NA
8HP1353A03NA
8HP1353A03NA - image 2
Datasheet preview

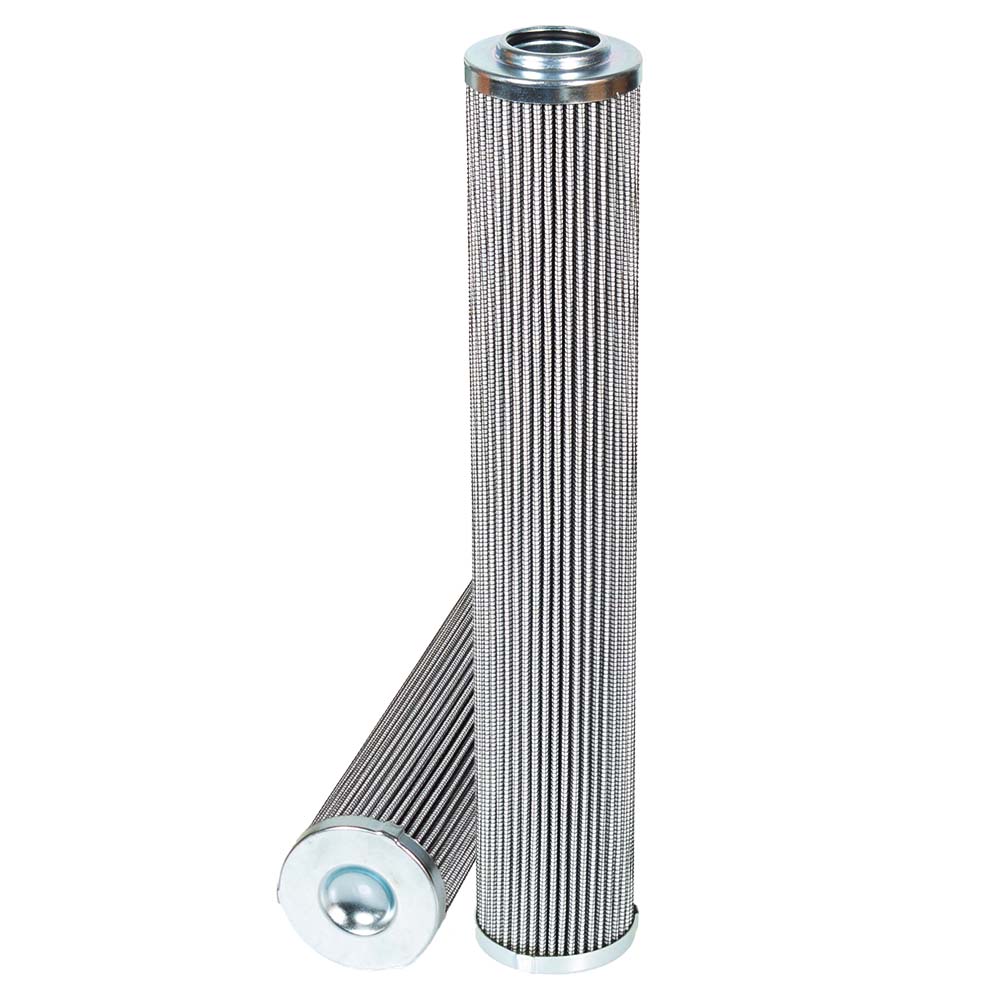

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP31032 Pressure Filter | Alternative to the MP Filtri 8HP1353A03NA

Brand: MicroFit
Price Match
$111.00
0.88 kg
0.0009 m³
United Kingdom
8421.99.90
0.4 kg
0.001 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31032 is the MICROFIT® approved replacement to the MP Filtri 8HP1353A03NA. Engineered and manufactured in Great Britain the MFHLP31032

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 2 1/16"
Inner Diameter 1 1/16"
Length 11 15/16"
Δ Collapse Pressure 304.6 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F

Description

The MICROFIT® UltraGen III MFHLP31032 is the MICROFIT® approved replacement to the MP Filtri 8HP1353A03NA. Engineered and manufactured in Great Britain the MFHLP31032

Cross References

To the genuine MP Filtri 8HP1353A03NA

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 2.09 in
Inner Diameter 1.08 in
Length 11.97 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 305 PSI
Seal Nitrile
Temperature Range -20 - +210°F
