MicroFit MFHHP40062 Replaces the Mahle 891026SMXVST3FPM

891026SMXVST3FPM
891026SMXVST3FPM
Representative product image Product image feedback

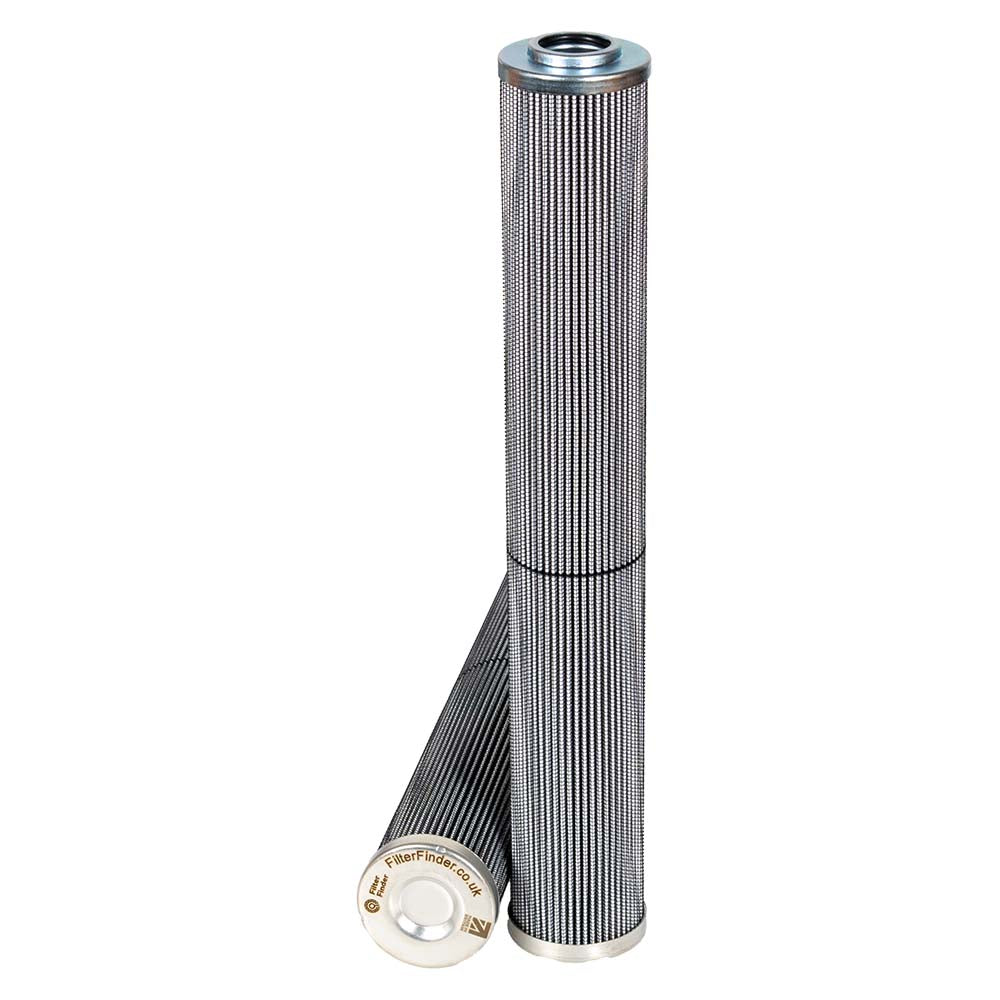

MicroFit® UltraGen III MFHHP40062 Pressure Filter | Replaces the Mahle 891026SMXVST3FPM

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40062 is the MICROFIT® approved replacement to the Mahle 891026SMXVST3FPM. Engineered and manufactured in Great Britain the MFHHP40062

Price Match
$304.00
3.89 lbs
0.03 ft³
468 pcs
United Kingdom
8421.99.90
1.72 lbs
0.043 ft³
468 pcs
United States
8421.29.80.90
1.79 lbs
0.03 ft³
468 pcs
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40062 is the MICROFIT® approved replacement to the Mahle 891026SMXVST3FPM. Engineered and manufactured in Great Britain the MFHHP40062

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 2"
Inner Diameter 15/16"
Length 13"
Δ Collapse Pressure 3045.8 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Mahle Brand Logo

Same Fit-Form & Function

As the Genuine Mahle 891026SMXVST3FPM

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 2.01 in
Inner Diameter 0.94 in
Length 12.99 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 3046 PSI
Seal Viton
Temperature Range -10 - +250°F
