MicroFit MFHR55165 Replaces the Rexroth 1.0015H10XLA000M

MICROFIT MFHR55165
MICROFIT MFHR55165
Representative product image Product image feedback

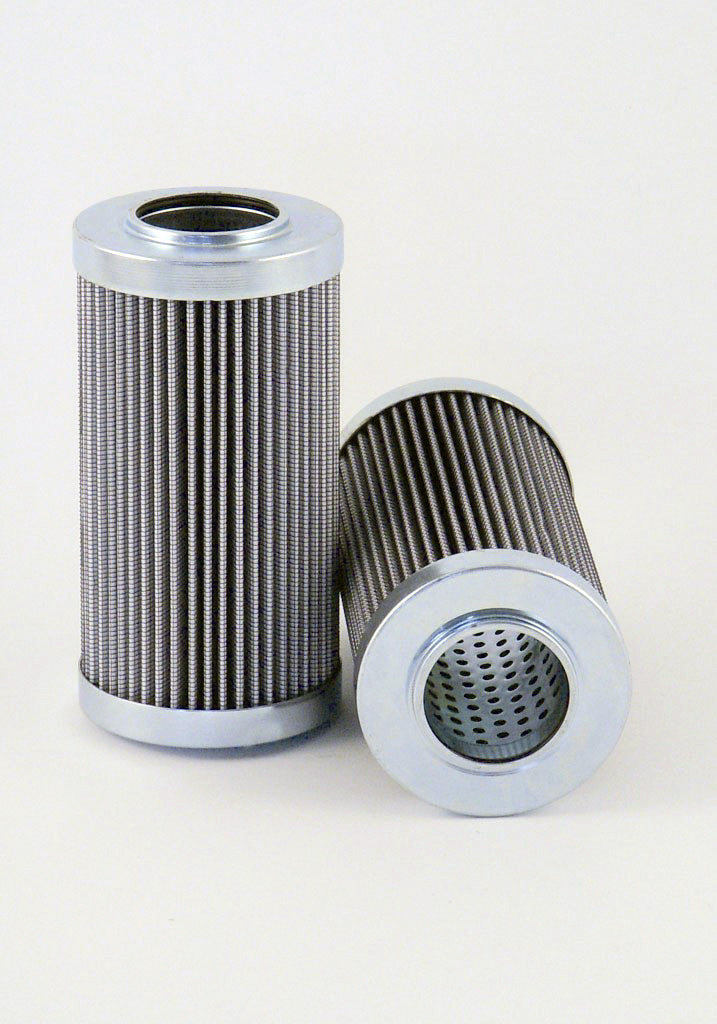

MicroFit® UltraGen III MFHR55165 Return Filter | Replaces the Rexroth 1.0015H10XLA000M

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR55165 is the MICROFIT® approved replacement to the Rexroth 1.0015H10XLA000M. Engineered and manufactured in Great Britain the MFHR55165

Price Match
$128.00
2.72 lbs
0.036 ft³
United Kingdom
8421.99.90
1.32 lbs
0.085 ft³
France
8421.99.90
1.26 lbs
0.036 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR55165 is the MICROFIT® approved replacement to the Rexroth 1.0015H10XLA000M. Engineered and manufactured in Great Britain the MFHR55165

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 3 1/8"
Inner Diameter 1 11/16"
Length 6 1/4"
Δ Collapse Pressure 435.1 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Rexroth Brand Logo

Same Fit-Form & Function

As the Genuine Rexroth 1.0015H10XLA000M

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Return Filter
Outer Diameter 3.15 in
Inner Diameter 1.66 in
Length 6.26 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 435 PSI
Seal Nitrile
Temperature Range -20 - +210°F
