MicroFit MFHHP40588 Replaces the Hydac 0280 D 005 BH3HCV

MICROFIT MFHHP40588
MICROFIT MFHHP40588
Representative product image Product image feedback

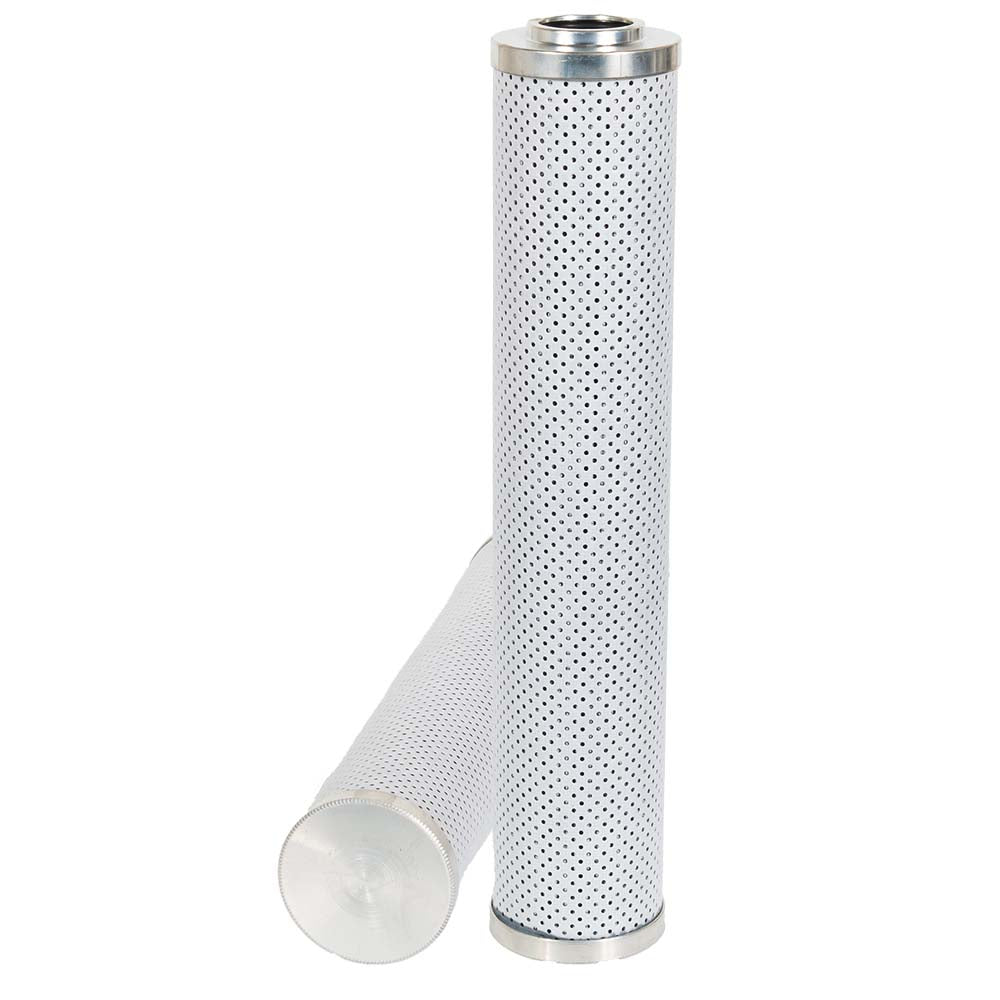

MicroFit® UltraGen III MFHHP40588 Pressure Filter | Replaces the Hydac 0280 D 005 BH3HCV

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40588 is the MICROFIT® approved replacement to the Hydac 0280 D 005 BH3HCV. Engineered and manufactured in Great Britain the MFHHP40588

Price Match
$260.00
8.11 lbs
0.06 ft³
United Kingdom
8421.99.90
3.68 lbs
0.06 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40588 is the MICROFIT® approved replacement to the Hydac 0280 D 005 BH3HCV. Engineered and manufactured in Great Britain the MFHHP40588

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 2 11/16"
Inner Diameter 1 5/16"
Length 14"
Δ Collapse Pressure 3045.8 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac 0280 D 005 BH3HCV

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Pressure Filter
Outer Diameter 2.72 in
Inner Diameter 1.34 in
Length 13.98 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 3046 PSI
Seal Viton
Temperature Range -10 - +250°F
