MicroFit MFHLP31349 Replaces the Hydac 01283388

01283388
01283388
Representative product image Product image feedback

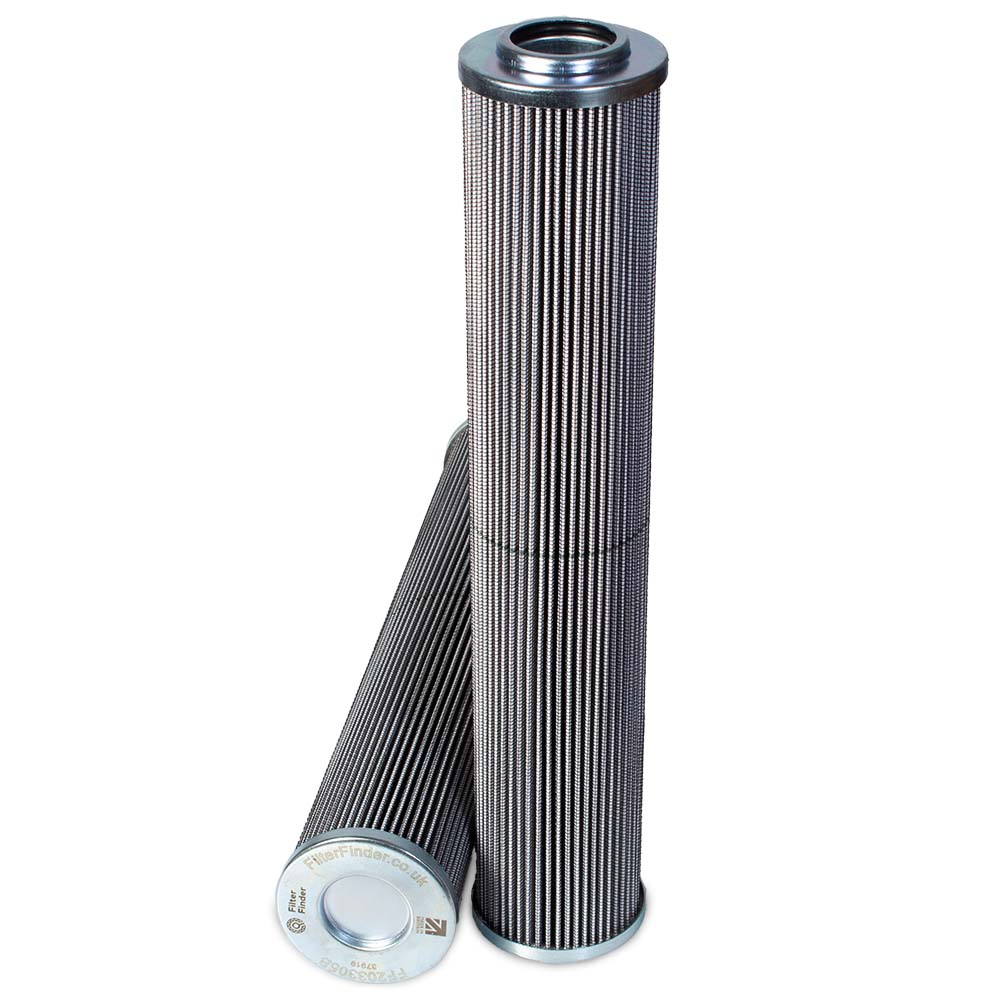

MicroFit® UltraGen III MFHLP31349 Pressure Filter | Replaces the Hydac 01283388

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31349 is the MICROFIT® approved replacement to the Hydac 01283388. Engineered and manufactured in Great Britain the MFHLP31349

Price Match
$193.00
5.63 lbs
0.06 ft³
United Kingdom
8421.99.90
2.56 lbs
0.06 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31349 is the MICROFIT® approved replacement to the Hydac 01283388. Engineered and manufactured in Great Britain the MFHLP31349

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 1100µ
Outer Diameter 2 11/16"
Inner Diameter 1 3/8"
Length 14"
Δ Collapse Pressure 290.1 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac 01283388

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
100µ
Efficiency 2
Style Pressure Filter
Outer Diameter 2.72 in
Inner Diameter 1.35 in
Length 13.98 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 290 PSI
Seal Viton
Temperature Range -10 - +250°F
