Summary

MicroFit MFHR51651 Replaces the Hydac 01262974

01262974
01262974
Representative product image Product image feedback

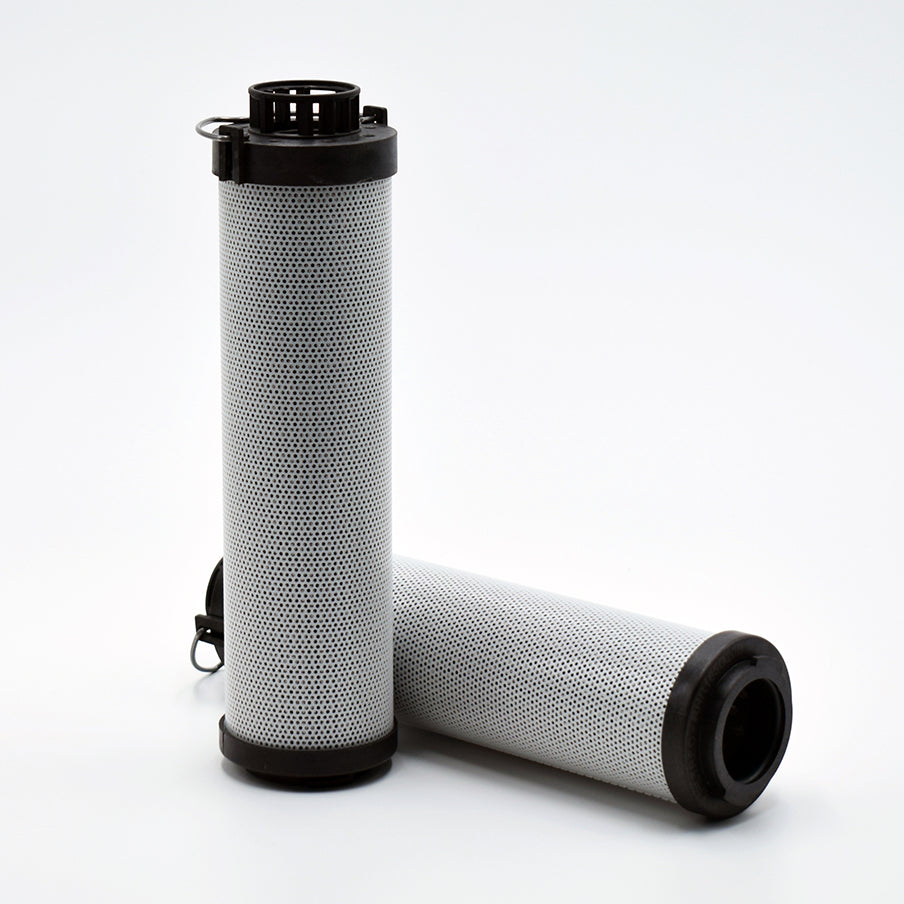

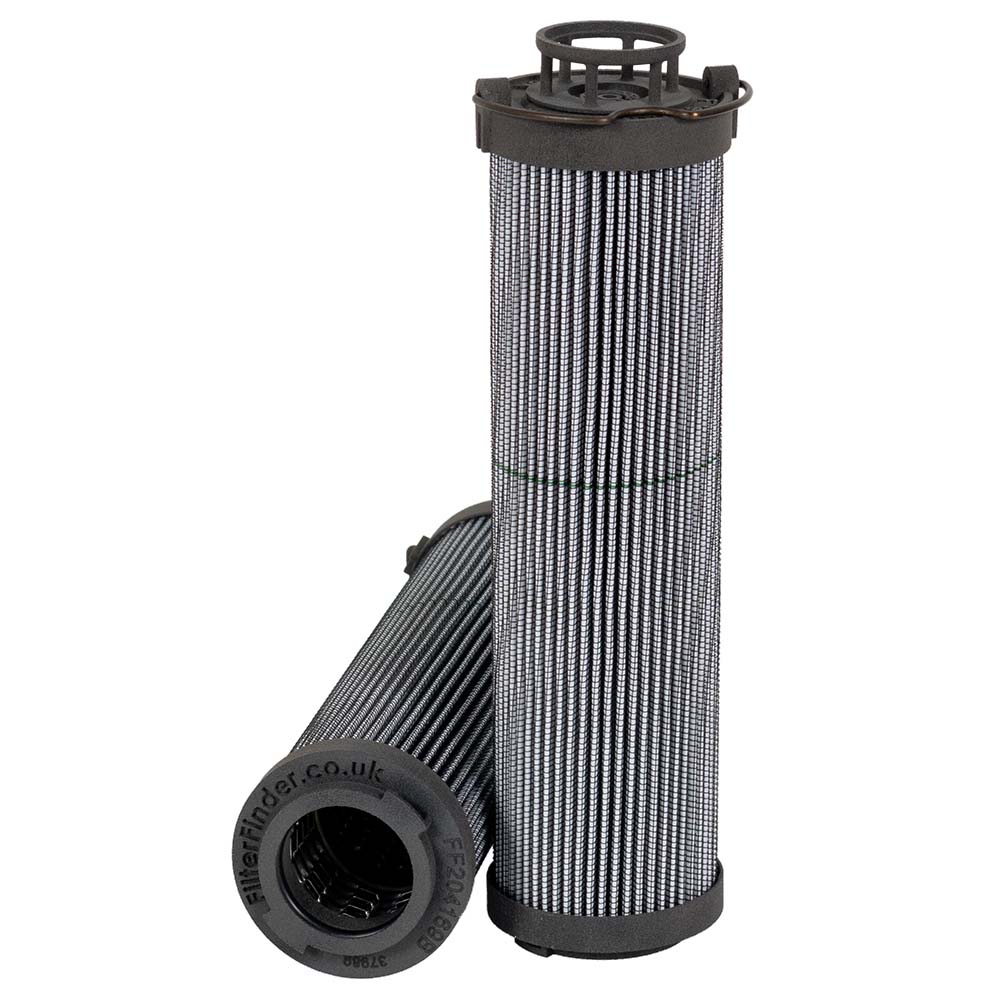

MicroFit® UltraGen III MFHR51651 Return Filter | Replaces the Hydac 01262974

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR51651 is the MICROFIT® approved replacement to the Hydac 01262974. Engineered and manufactured in Great Britain the MFHR51651

Price Match
$78.00
1.93 lbs
0.029 ft³
United Kingdom
8421.99.90
0.88 lbs
0.029 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR51651 is the MICROFIT® approved replacement to the Hydac 01262974. Engineered and manufactured in Great Britain the MFHR51651

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 2 3/8"
Inner Diameter 1 3/8"
Length 9"
Bypass Pressure 44 psi
Δ Collapse Pressure 290.1 psi
Seal MaterialViton
Temperature Range -10 - +210°F
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac 01262974

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Return Filter
Outer Diameter 2.36 in
Inner Diameter 1.35 in
Length 9.0 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

44 PSI
Collapse Pressure 290 PSI
Seal Viton
Temperature Range -10 - +210°F
