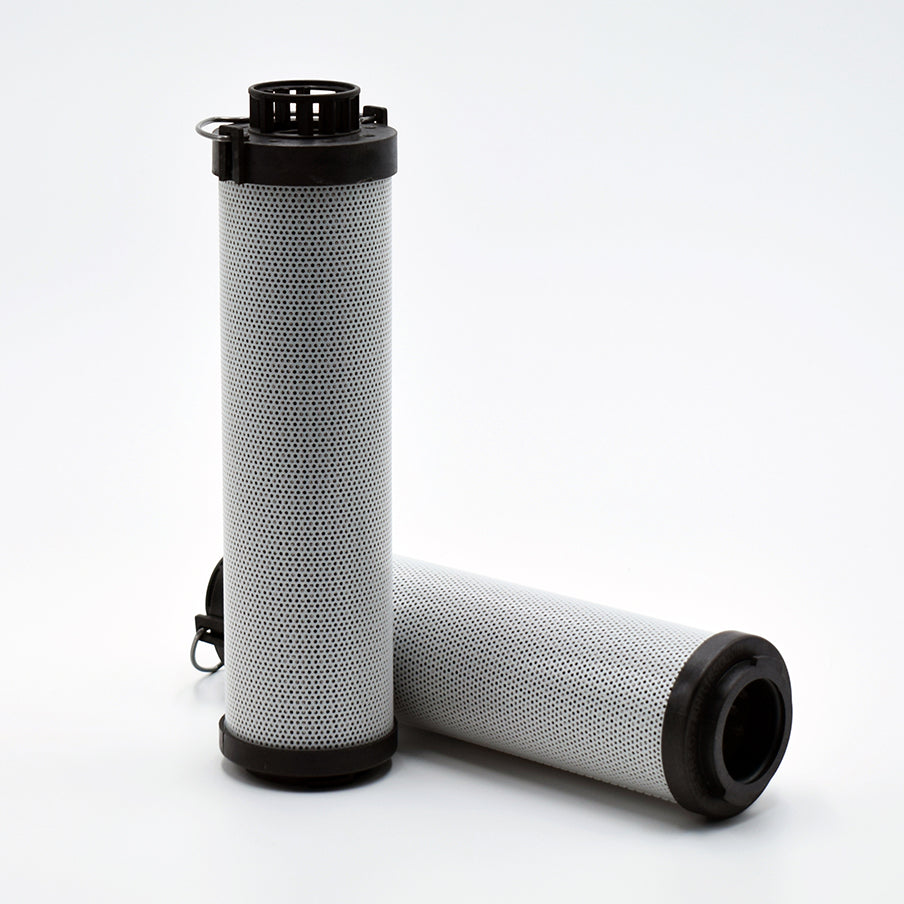

Representative product image Product image feedback

MicroFit® UltraGen III MFHR51649 Return Filter | Replaces the Hydac 01262972

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR51649 is the MICROFIT® approved replacement to the Hydac 01262972. Engineered and manufactured in Great Britain the MFHR51649

Price Match
$79.00
2.44 lbs
0.029 ft³
United Kingdom
8421.99.90
1.12 lbs
0.029 ft³
Italy
8421.99.90
0.75 lbs
0.056 ft³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR51649 is the MICROFIT® approved replacement to the Hydac 01262972. Engineered and manufactured in Great Britain the MFHR51649

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 2 3/8"
Inner Diameter 1 3/8"
Length 9"
Bypass Pressure 44 psi
Δ Collapse Pressure 290.1 psi
Seal MaterialViton
Temperature Range -10 - +210°F
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac 01262972

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Return Filter
Outer Diameter 2.36 in
Inner Diameter 1.35 in
Length 9.0 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

44 PSI
Collapse Pressure 290 PSI
Seal Viton
Temperature Range -10 - +210°F
