Summary

MicroFit MFHHP40769 Replaces the Internormen 01.E170.40G.HR.E.P

MICROFIT MFHHP40769
MICROFIT MFHHP40769

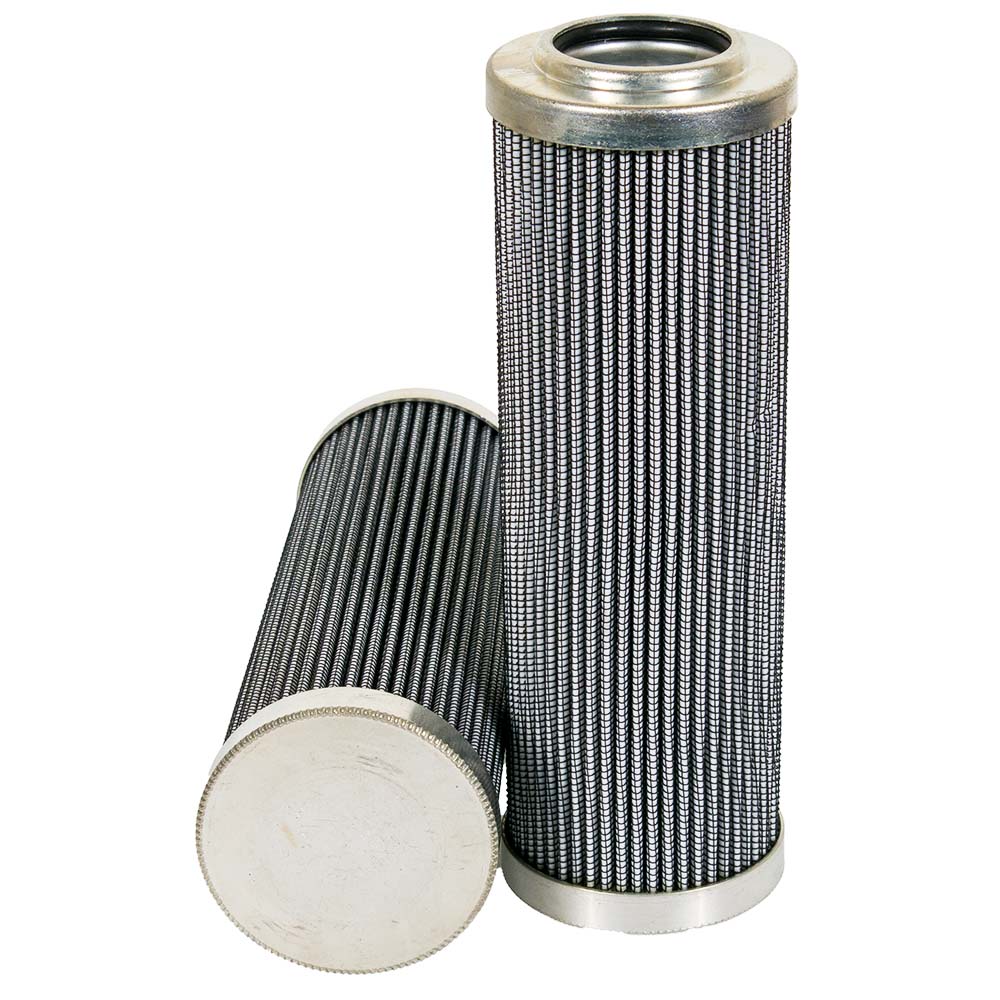

Representative product image Product image feedback

MicroFit® UltraGen III MFHHP40769 Pressure Filter | Replaces the Internormen 01.E170.40G.HR.E.P

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40769 is the MICROFIT® approved replacement to the Internormen 01.E170.40G.HR.E.P. Engineered and manufactured in Great Britain the MFHHP40769

Price Match
$201.00
3.09 lbs
0.023 ft³
United Kingdom
8421.99.90
1.41 lbs
0.023 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40769 is the MICROFIT® approved replacement to the Internormen 01.E170.40G.HR.E.P. Engineered and manufactured in Great Britain the MFHHP40769

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 140µ
Outer Diameter 2 3/8"
Inner Diameter 1 3/8"
Length 7 1/16"
Δ Collapse Pressure 3045.8 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Internormen Brand Logo

Same Fit-Form & Function

As the Genuine Internormen 01.E170.40G.HR.E.P

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
40µ
Efficiency 2
Style Pressure Filter
Outer Diameter 2.36 in
Inner Diameter 1.35 in
Length 7.05 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 3046 PSI
Seal Nitrile
Temperature Range -20 - +210°F
